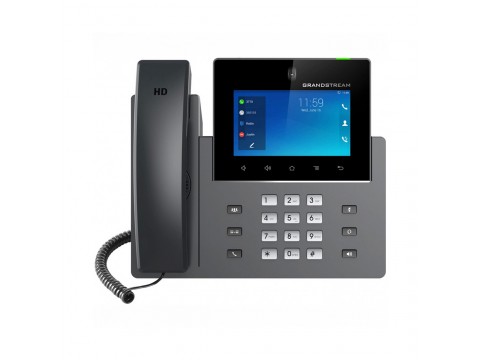

Grandstream GXV3450 IP Video Phone, 5 inch 1280x720 capacitive touch screen, 16 lines with up to 16 SIP accounts, 2 mega-pixel CMOS camera, Wi-Fi 5 a

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
5.0 (1280 ×720) capacitive LCD touch screen, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, dual-band dual-stream Wi-Fi module 5 (2.4 and 5 GHz), 802.11 a/b/g/n/ac

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB 2.0 and USB 3.0 connectors

Main buttons
11 function keys: CONFERENCE, TRANSLATION, SENDING/REDIAL,
OFF SOUND, HEADSET, SPEAKER, VOLUME –/+. 3 special Android keys: HOME,
LAST, BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and capabilities, video resolution up to 720p, frame rate up to 30 fps, bitrate up to 2 Mbps,
video conference for three participants (720p, 30 fps), flicker prevention technology,
autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 10-way audio conference (including the creator),
single internal number (shared call appearance, SCA)/combined line function (bridged
line appearance, BLA), virtual programmable key, downloading contacts (XML, LDAP,
up to 1000 elements), recording calls (locally and to the server), call log (up to 1000 entries),
call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups,
personalization of ringtones and ringtones on hold, switching to a backup server in
case of failure

Typical applications
• Local applications: Contacts, Call log, File manager,
softkey, Settings, Browser, Clock, Voicemail, Calculator, Audio recording, GS store, etc.
• Supports third-party Android apps
• API/SDK available for custom application development

Android
Uses Android 11.0 OS

Application Deployment
Supports the development, download and use of Android 11-compatible applications
on a device with preparation control

HD audio
Yes, two omnidirectional microphones, an HD headset and a speaker with broadband
audio support

Rack
Table stand with three tilt levels

Extension Module
You can connect up to four GBX20 expansion modules with a color LCD display (272 x 480),
20 speed dial/BLF keys with two-color LEDs, two
navigation buttons and power consumption of up to 1.2 watts per module

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-sess authentication, 256-bit configuration file
AES encryption, TLS, SRTP*, HTTPS, access control to the transmission medium based on 802.1x,
secure download with protection against hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Power and energy efficiency
The package includes a universal power adapter. Input: 100-240
VAC; 50-60 Hz; Output: DC12V, 1.5 A (18 W).
Integrated PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package contents
Phone GXV3450, headset with wire, stand, universal power adapter, network
cable, screen wipe, quick installation guide

Compatibility
FCC: CFR 47, Part 15, Subsection B, Class B; CFR 47, Part 15, Subsection C; CFR 47, Part 15,
Subsection E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032, Class B; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA: BS EN 55032, Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
RoHS 2.0
