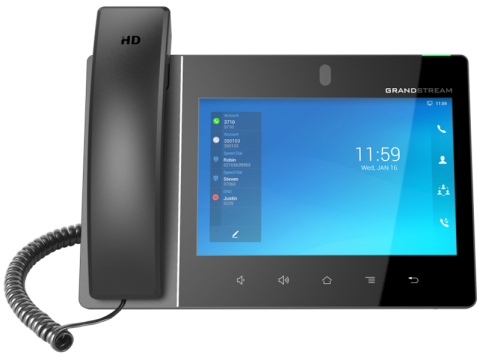

Grandstream GXV3380, IP Multimedia Video Phone, 8 (1280 x 800) capasitive touch screen color LCD, 2M CMOS camera,Dual 100M/1000M Ethernet 802.af Po

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switched 10/100/1000 Mbps ports with built-in PoE/PoE+ support

Screen
8 1280x700x capacitive touch screen (10 touches) IPS LCD

Camera
2 MP CMOS position-shifting camera with shutter, 1080p 30fps

Bluetooth
Yes, built-in Bluetooth 4.2 + EDR module

Wi-Fi
Yes, dual band (2.4GHz and 5 GHz) class 802.11ac a/b/g/n/ac and WMM

Additional ports
RJ9 headset jack (EHS support when using Plantronics headsets), 3.5mm for
stereo headphones with microphone, USB 2.0, micro SD, HDMI-out (1.4 to 1080p60fps), HDMI-in (1.4
to 1080p@60fps)

Function buttons
2 functional touch buttons VOLUME +/-, 3 special touch buttons Android HOME, MENU, BACK
Speech Codecs and Capabilities Broadband Opus, Broadband G.722, G.711µ/a, G. 729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Video codecs and
H.264 BP/MP/HP capabilities, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4 Mbps,
3-way video conference (1080p at 30fps), BFCP, video interlocutor (up to 1080p at
30fps) + video content (up to 1080p at 15fps), anti-flicker, autofocus and auto exposure,
camera shutdown

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy),
Parking/call interception, 7-way voice conference (including host), shared line
(SCA)/ (BLA), virtual multi-purpose buttons, downloadable contacts (XML, LDAP, up to 2000),
Call recording (local and to the server), call log (up to 2000 records), call waiting,
answering machine, XML screen setup, flexible number plan, shared workplace,
customizable ringtones and music on hold, emergency switching to a backup
server

Application Examples
Local Applications: Contacts, Call Log, File Manager, Programmable
Button, Settings, Browser, Email, Voicemail, Calculator, Clock,
Voice Recorder, Microsoft Teams App Store, etc.

Support for third-party applications
Android, such as Skype, Google Hangouts, etc. API/SDK support for creating applications.

Android
It runs Android 7.x

Installing Applications
Support for developing, downloading and pre
-installed Android 7.x compatible apps on the device by using configuration management

HD Audio
Yes, 2 omnidirectional microphones, HD sound quality in the handset and speaker with
broadband audio support

Rack
Built-in stand with position change

QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password, MD5-based authentication and
MD5-sess, configuration file with 256-bit AES encryption, TLS, SRTP*, HTTPS, 802.1x
environment access control, Kensington Castle support

Supported languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean and Japanese

Update/Automatic setup
Firmware update via TFTP/HTTP/HTTPS or using local HTTP download,
mass deployment using TR-069 or XML configuration file with AES
encryption, Voice Recorder, Google Store app Store, etc.

Power and energy efficiency
Universal power supply (included): Input: 100-240V AC 50-60Hz; Output
12B post. current 1.5A (18W) Built-in support of PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
*The USB port only works when using a power supply or PoE+

Temperature and humidity
Operation: 0°C to 40°C, Storage: -10°C to 60°C,
Humidity: 10% to 90% non-condensing

Package contents
Phone model GXV3380, tube with wire, stand, universal power supply,
network cable, screen cleaning cloth, quick guide, brochure, GPL license

Accordance
FCC: CFR 47 Part 15 Subsection B Class B; CFR 47 Part15 Subsection C; CFR 47 Part15
Subsection E; UL 60950-1 (Power adapter);Part 68 (HAC)
CE: EN55032 Class B; EN55035;EN61000-3-2; EN61000-3-3; EN62368-1;EN300328; EN301893;
EN301489-1; EN301489-17; EN62311;RoHS
RCM: AS/ACIF S040;AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
