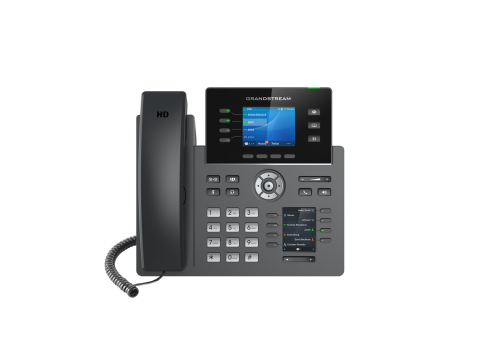

Grandstream GRP2614, Carrier-Grade IP Phones, 4 line keys, 4 SIP accounts, 24 Digital BLF and Speed Dial keys, HD (with power supply)

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,
NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,
TLS, SRTP*, IPV6

Network interfaces
Two Gigabit network ports 10/100 Mbit/s auto-detection with support
PoE

Bluetooth
Yes, built-in

Wi-Fi Yes, dual-band Wi-Fi module 802.11a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
TFT color LCD screen 2.8 inches (320x240), additional screen 2.4 inches
(320x240)

Speech Codecs and Features
Support G7.29A/B, G.711p/a-law, G.726, G.722(wide-band), G723,iLBC, OPUS,
in- and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC,
AJB, AGC

Telephony functions
Hold, Transfer, forwarding, 3-way conference, Call Parking
, Call Interception, paired lines (SCA)/(BLA), downloadable
Phonebook (XML, LDAP, up to 2000 positions), Call waiting, Call log (up to 2000
records), XML personalization of the screen, auto-dial when you pick up the handset, auto-answer,
call by pressing, flexible number plan, shift work of users,
personalized ringtones and melody on hold, switching to
a backup server in case of failure

HD Audio
Yes, high-resolution sound in the speaker tube and speaker with
broadband sound support

Extension Module
No

Function keys
4 line buttons and up to 4 SIP accounts, 8 MPK expansion buttons with two-color
LED display with 2 left/right buttons, 4 XML programmable
context-sensitive on-screen buttons, 5 navigation/menu buttons,
11 special function buttons: MESSAGE/MESSAGE (with LED
indicator), phonebook/phonebook, transfer/transfer, conference/
conference call, hold/hold, headset/headset, mute/off sound,
send/redial/send/redial, speakerphone/speakerphone, vol+/
volume+, vol-/Volume base Yes, 2 positions available, wall mounting option (Wall mounting kit
sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS
Additional RJ9 ports headset jack (EHS support when using Plantronics headsets)

Safety
User and administrative level password,
MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption,
SRTP*, TLS, 802.1x media access control, secure boot

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Configuration Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Power and Energy Efficiency
Universal Power Adapter - Input: 100-240V; Output: +12VDC, 1A; Powered
by Ethernet (802.3af); IEEE 802.3az Ethernet energy efficiency; Max.
Power consumption 3.5W (power adapter) or 4W (PoE)

Temperature and Humidity
Operation: 0°C to 40°C, Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
Phone GRP2614, handset with wire, stand, 12V power adapter,
network cable, quick installation guide, GPL license

Dimensions and weight
Device weight: 950g; Package weight: 1460g Dimensions: 234mm x 213mm x 82.2mm

Accordance
FCC: Part 15 Class B; Part 15 Subsection C, 15.247; Part 15 Subsection E, 15.407;
FCC Part 68 HAC
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301489-1; EN
301489-17; EN 300328; EN 301893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 61000.3.2; AS/NZS 61000.3.3; AS/NZS 4268; AS/NZS
60950.1; AS/CA S004
IC: ICES-003; CS-03; RSS-247; RSS-102.
