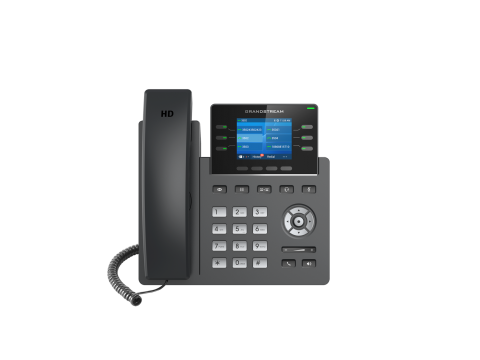

Grandstream GRP2613, Carrier-Grade IP Phones, 3+3 line keys, 3 SIP accounts, 24 Digital BLF and Speed Dial keys, HD (with power supply)

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,
NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069,
802.1x, TLS, SRTP*, IPV6

Network interfaces
Two switched 10/100/1000 Mbit/s Gigabit Ethernet ports with
auto-detection with PoE support

Screen
TFT color LCD screen 2.8 inches (320x240)

Function buttons
6 line buttons and up to 3 SIP accounts, 4 XML context-sensitive on-screen buttons, 5 navigation/menu buttons, 11 special
function buttons: MESSAGE/MESSAGE (with LED indicator), PHONEBOOK/PHONEBOOK, TRANSFER/TRANSLATION, CONFERENCE/CONFERENCE CALL, HOLD/HOLD, HEADSET/HEADSET, MUTE/OFF SOUND, SEND/
REDIAL / SEND/REDIAL, SPEAKERPHONE/SPEAKERPHONE,
VOL+/VOLUME+, VOL-/LOUDNESS Optional RJ9 port headset jack (EHS support when using headsets
Plantronics)

Speech Codecs and Features
Support G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS,
in- and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC,
AJB, AGC

Telephony functions
Hold, transfer, forwarding, 3-way conference, call parking
, call interception, paired lines (SCA)/(BLA), downloadable
phonebook (XML, LDAP, up to 1000 positions), call waiting
, Call log (up to 2000 entries), XML screen personalization, auto-dialing when
picking up the handset, auto-reply, push call, flexible number plan,
shift work of users, personalized ringtones and
melody on hold, switching to a backup server in case of failure

HD Audio
Yes, high-resolution sound in the speaker tube and speaker with
broadband sound support

Footing
Yes, 2 positions are available, wall mounting option (Wall mounting kit
sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password,
MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption,
SRTP*, TLS, 802.1x media access control, secure boot..

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Customization
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS/TR-069 or XML configuration file with AES
encryption.

Power and energy efficiency
Universal Power adapter:
Input: 100-240V; Output: +5V, 0.6A;
Powered by Ethernet(802.3af)
IEEE 802.3az Ethernet energy efficiency
Max. power consumption 3W (power adapter) or 3.8W (PoE)

Temperature and Humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
Phone GRP2613, handset with wire, stand, 5V power adapter,
network cable, quick installation guide, GPL license
Dimensions and weight Dimensions: 203mm x 193mm x 52.1mm; Device weight: 554g; Package weight: 936g

Accordance
FCC: Part 15 Class B; FCC Part 68 HAC
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1
RCM: AS/NZS CISPR32;AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 62368.1; AS/CA
S004
IC: ICES-003; CS-03
