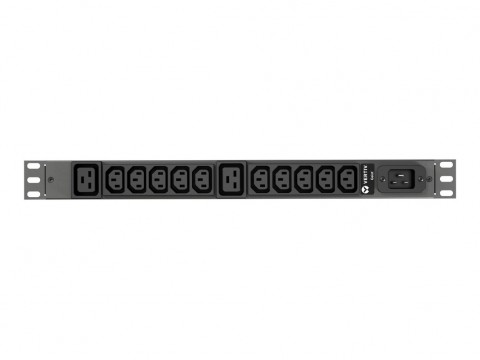

Vertiv Geist Rack PDU, Basic, 1U, input IEC 60320 C20 power inlet 230V 16A, outputs (10)C13 (2)C19

Number of inputs
1

Voltage
200-240V

Current
16A

Input voltage (load capacity)
3.6 kW (230 V)

Frequency
50/60 Hz

Overcurrent protection


Switch
No

Fork Type
IEC60320 C20 power connector (cord sold separately)

Total number of outlets/outlets
12

Socket type/outlet No. 1 IEC C13
- Quantity on the edge of 10
- Cans of styles out of 5
- Maximum power per outlet/outlet 10 A per group of outlets
- The voltage to the outlet is 230 V.

Socket type/outlet No. 2 IEC C19
- Number on the edge of 2
- Individual style
- Maximum power per outlet/outlet 16A
- The voltage to the outlet is 230 V.
Maximum operating temperature 60C/140F

Heavy steel — black powder coating

Configuration
Zero U or 1U

Brackets for mounting on a 19 inch panel
Yes

SLB-4 Brackets
Yes

Guarantee
The product has a 5-year limited warranty upon registration for 120 days from the date of purchase, otherwise the default warranty is 3 years.

Certification/agency permits. CE marking.
Certification/agency permits with UKCA marking
Certification/Agency approvals Comply with IEC 62368-1 (DOC available)
Certification/approval of the agency. Complies with EN 55032 and EN 55035.
Certification/Agency Permits Comply with RoHS
Certification/permits of the EAC Agency
Certification/permits of Cau Mark agencies

Case dimensions (HxWxD)
44 x 432 x 47 mm.

Weight on delivery
3 pounds (1.36 kg)
