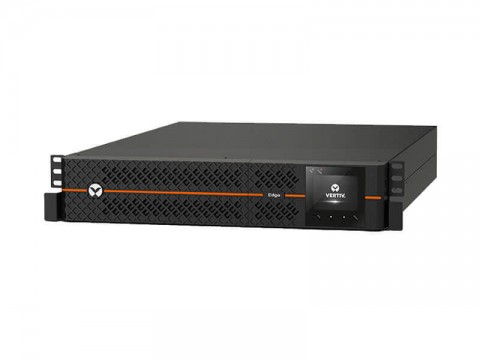

EDGE UPS UPS 2.2kVA 230V 2U Rack/Tower

Technical characteristics-models 2 in rack/floor version
EDGE Model Number-22000IRT2UXL
Power (VA/W) 2200 VA/1980 W
Dimensions, mm
Unit (W x D x H) 438 x 510 x 88
Delivery, W x D x H 600 x 800 x 240

Weight, kg
Ag-T 27
In a package of 35

Input AC current parameters
Rated voltage values of 230 V
Voltage when working without a battery (default 230 V) 166-278
Frequency range (Hz) 55-65
IEC60320 C20 Input Power Connection
Overvoltage protection (J): 624
Output AC current parameters
Output connectors (3 + 1) IEC320-C13+1 IEC320-C19

Output sockets-controlled Yes, 1 group

Waveform (when running on batteries) Sinusoid
The switching time is usually from 4 to 6 ms
Output overload (AC mode)
106% - 125% at 60 s
126% - 150% at 50 s
151% - 200% at 2 s

Efficiency (full load, linear mode, type) 97 %

Battery
Type Sealed, lead-acid, with valve control

Quantity and voltage and capacity 6 x 12 V x 7 Ah
Charging time
(internal batteries, usually) 3 hours at 90%
Compatible External Battery Cabinet GXT5-EBC72VRT2U (E)
Environmental protection
Operating Temperature (°C) ( * ) 0-70
Storage temperature, °C from -25 ° C to +55 ° C without battery inside

Relative humidity (during operation) is 20% ... 90%
The maximum altitude above sea level is 3000
Sound noise (linear mode)
<40 dB in normal mode, load <70%
<45 dB AVR, load >70%

Rack-mounted/ floor-mounted system design (2U)

Regulatory compliance
Compliance with CE standards, CB CE report
Safety EN60020-1:2008+A1:2013
Transportation ISTA 2A

Guarantee
2-year warranty
( * )

Note:

When the temperature is >40 ° C, the power is reduced. Check the user manual
