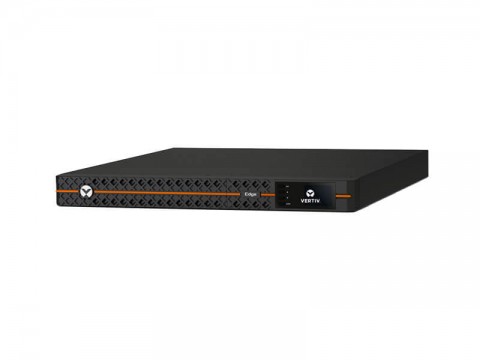

EDGE UPS UPS 1kVA 230V 1U Rack

Technical Specifications — 1U models

EDGE Model Number-1500IRM1U
Power (VA/W) 1500 VA/1500 W

Dimensions, mm
Unit (W x D x H) 438 x 600 x 44
Delivery, W x D x H 570 x 780 x 200

Weight, kg
Ag-T 23
In a package of 31

Input AC current parameters
Rated voltage values of 230 V
Voltage when working without a battery (default 230 V) 166-278
Frequency range (Hz) 55-65
IEC320-C14 Input Power connection
Overvoltage protection (J): 624

Output AC current parameters
Output connectors (3 + 1) IEC320-C13
Output sockets-controlled Yes, 1 group

Waveform (when running on batteries) Sinusoid
The switching time is usually from 4 to 6 ms
Output overload (AC mode)
106% - 125% at 60 s
126% - 150% at 50 s
151% - 200% at 2 s

Efficiency (full load, linear mode, type) 97 %

Battery
Type Sealed, lead-acid, with valve control

Quantity and voltage and capacity 6 x 6 V x 9 Ah
Charging time (internal batteries, usually) 3 hours at 90%
Compatible external battery cabinet -- -- --
Environmental protection
Operating Temperature (°C) ( * ) 0-70
Storage temperature, °C from -25 ° C to +55 ° C without battery
Relative humidity (during operation) is 20% ... 90%
The maximum altitude above sea level is 3000

Sound noise (linear mode)
<40 dB in normal mode, overload <70%
<45 dB AVR, load >70%

Version Rack (1U)

Regulatory compliance
Compliance with CE standards, CB report
Safety EN60020-1:2008+A1:2013
Transportation ISTA 2A

Guarantee
2-year warranty

( * )

Note:

When the temperature is >40 ° C, the power is reduced. Check the user manual
