Specifications
Details | |
---|---|
Product code | RBwAPGR-5HacD2HnD |
Architecture | ARM 32bit |
CPU | IPQ-4018 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
Switch chip model | IPQ-4018 |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -30°C to 60°C |
IPsec hardware acceleration | Yes |
Powering
Details | |
---|---|
Number of DC inputs | 2 (PoE-IN, DC jack) |
DC jack input Voltage | 10-57 V |
Max power consumption | 11 W |
Max power consumption without attachments | 10 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 18-57 V |
Wireless specifications
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2.5 |
Wireless 2.4 GHz chip model | IPQ-4018 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 867 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 2.5 |
Wireless 5 GHz chip model | IPQ-4018 |
Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 2 |
Peripherals
Details | |
---|---|
Number of SIM slots | 1 Modem (Micro SIM) |
MiniPCI-e slots | 1 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP54 |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 22 | -100 |
11MBit/s | 22 | -94 |
6MBit/s | 23 | -95 |
54MBit/s | 19 | -78 |
MCS0 | 23 | -95 |
MCS7 | 18 | -73 |
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 24 | -95 |
54MBit/s | 20 | -78 |
MCS0 | 24 | -95 |
MCS7 | 19 | -73 |
MCS9 | 17 | -68 |

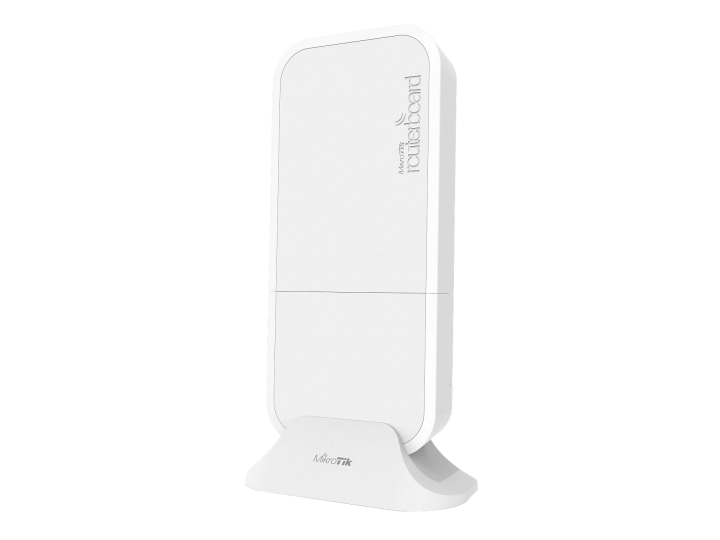

A small package with a huge ambition – the wAP ac R is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. Enjoy wireless experience anywhere – indoors or outdoors! wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C and can be easily mounted on walls, ceilings or poles.
Don’t be fooled by the compact size – this device is powered by a four core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

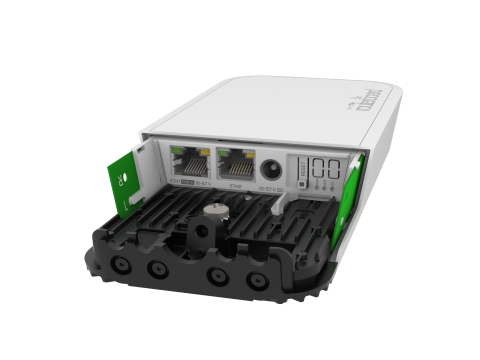

It has two Gigabit Ethernet ports and miniPCIe slot for LTE modem of your choice (not included). The wireless cards are not supported.
High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac LTE will meet most demands without making sacrifices.
*) the device has no built in LTE modem, the SIM slot can only be used, if an LTE modem is installed (not included with the product).
