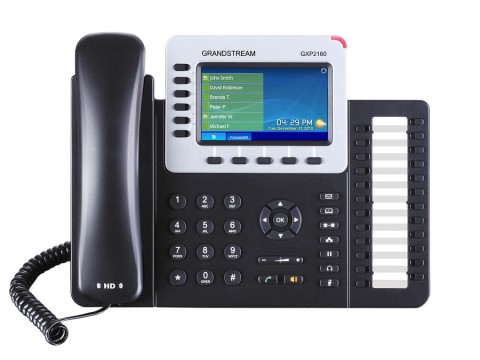

Grandstream GXP2160, 6-line Enterprise HD IP Phone, 480x272 TFT color LCD, 24+6 speed keys, dual GigE with 802.3af PoE, Bluetooth, USB, (with PS)

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),
DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS,
SRTP*, IPv6, CDP/SNMP/RTCP-XR

Network Interfaces
Dual 10/100/1000 Mbps network port with automatic recognition and
built-in PoE

Graphic display
Color LCD Display(480x272) TFT LCD 4.3 inches

Bluetooth
Yes, Bluetooth V2.1

Function keys
6 line keys, up to 6 SIP accounts, 24 BLF speed dial/extension keys with
two-color display, 5 context-sensitive programmable keys, 5
navigation/menu keys, 11 special function keys for functions such
as: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER,
CONFERENCE, CALL HOLD, HEADSET, MUTE, SEND/
REDIAL, SPEAKERPHONE, VOLUME +, VOLUME -

Speech codec
Support G.729A/B, G.711µ/a-law, G.726, G.722 (broadband),G723.1, iLBC, Opus,
in- and out-of-band DTMF (in audio, RFC2833, SIP INFO

Additional connectors
Headset with RJ9 connector (which allows the use of EHS with Plantronics headsets), USB

Telephony Functions
Hold, transfer, forwarding, conference up to 5 participants, standby mode,
call capture, call separation (SCA)/call transfer (BLA), downloadable
phonebook (XML, LDAP, up to 2000 positions), call waiting, call log
(up to 500 entries), screen setup, auto-dial when answering the phone, auto-response,
one-click dialing, flexible dialing plan, hot table system, personal
music ringtones and music for standby mode, backup server.

Standard Applications
Last.fm (expected), weather, stocks, currency, news (expected), Internet radio (expected), XML

HD Audio
Yes, both on the handset and on the speaker

Table mount
Yes, there are 2 corner positions

Wall Mount
Yes

Quality of service in the network (QoS)
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level passwords,
MD5 and MD5-sess authentication, AES protected configuration file, media access control
SRTP*, TLS, 802.1x

Support for foreign languages
English, Arabic, Chinese, Croatian, Czech, Dutch, German,
French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Slovenian, Spanish, Turkish.

Update/Service
Program update via TFTP/HTTP/HTTPS, mass pre-configuration of devices via TR-069 or encrypted XML configuration file, FTP/FTPS

Energy and Environmental efficiency
The kit includes a universal power adapter: Input: 100-240 V; Output: +12V, 1A Built-in current-over-Ethernet (802.3af) The maximum power consumption is 12 W (power adapter) or 12.95W (PoE)

Dimensions
Dimensions: 222 mm (W) x 210 mm (L) x 93 mm (H);
Device weight: 0.98kg; Package weight: 1.63 kg

Temperature and Humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Contents of the delivery set
Phone GXP2160, handset with cord, base, universal power
supply, power cord,
Quick Start Guide

Compatibility
FCC Part15 (CFR 47) Class B, EN55022 Class B, EN61000-3-2, EN61000-3-3, EN55024,
EN60950-1, AS/NZS
CISPR22 Class B, AS/NZS CISPR 24; RoHS; UL 60950 (power supply)
