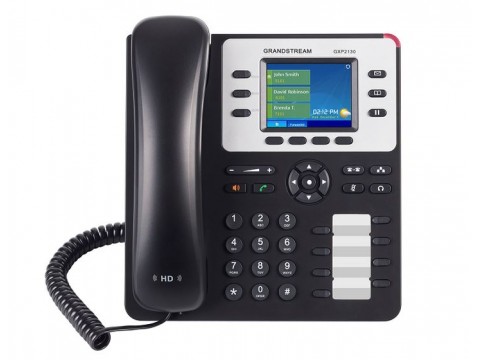

Grandstream GXP2130, 3-line Enterprise HD IP Phone, Bluetooth, 320x240 TFT color LCD, dual GigE ports with 802.3af PoE, (with power supply)

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,
TLS, SRTP*, IPv6, CDP/SNMP/RTCP-XR

Network interfaces
Dual 10/100/1000Mbps network port with automatic identification and
built-in PoE

Graphic display
Color TFT LCD display with a resolution of 320x240 pixels and a diagonal of 2.8 inches

Function Keys
Z line keys and up to 3 SIP accounts, 8 speed dial/extension keys
BLF with two-color LEDs, 4 context-sensitive programmable
keys, 5 navigation menu keys, 11 separate keys for functions:
MESSAGE (with LED indicator), PHONEBOOK, TRANSFER,
CONFERENCE, HOLD, HEADSET, OFF SOUND, SEND/REPEAT. SET,
SPEAKER. LOUD+, a loud-voice codec

Support
G.729A/B, G.711µ/a-law, G.726, G.722 (Broadband),G723.1, iLBC,
Opus, in- and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC,
PLC, AJB, AGC

Additional ports
Headset with RJ9 connector (which allows the use of EHS with Plantronics headsets)

Telephony Functions
Hold, Transfer, redirect, Audio conference on 4 sides,
Call parking, Call interception, SCA (Shared call appearance) BLA (Bridged
line appearance), downloadable phonebook (XML, DAP, up to 2000 entries),
call waiting, call log (up to 500 entries), screen setup, auto-dial
when picking up the handset, auto-answer, dial on click, flexible dial plan, shared
desktop (hot-desking), custom music ringtones and music in
hold mode, server margin and failure bypass

Standard Applications
Weather, XML

HD Audio
Yes, both on the handset and on the speaker

Base stand
Yes, there are 2 corner positions

Possibility of mounting to the wall
Yes

QoS
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level passwords, MD5 and MD5-sess authentication, AES protected configuration file, media access control SRTP*, TLS, 802.1x

Multilingual support
Arabic, Chinese, English, Croatian, Czech, Dutch, German,
French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Slovenian, Spanish, Turkish

Multilingual update/service provision
Updating the program via TFTP/HTTP/HTTPS, mass provision of services
via TR-069 or encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
The kit includes a universal power adapter: Input: 100-240V,
AC; Output: 12V, DC/0.5A (6W); Input: Built-in Poe (Powered via
Ethernet), 802.3af, class2

Dimensions and weight Dimensions
193mm (W) x 211mm (L) x 85mm (H)
Weight of the device: 0.81kg; Package weight: 1.44kg

Temperature and Humidity
0~40ºC (32~104ºF ), 10~90% (non-condensing)

Contents of the delivery set
Phone GXP2130, handset with cord, base, universal power
supply, power cord,
Quick Start Guide

Compliance with FCC Part 15 ClassB, EN55022 ClassB, EN61000-3-2, EN61000-3-3, EN55024, EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950
