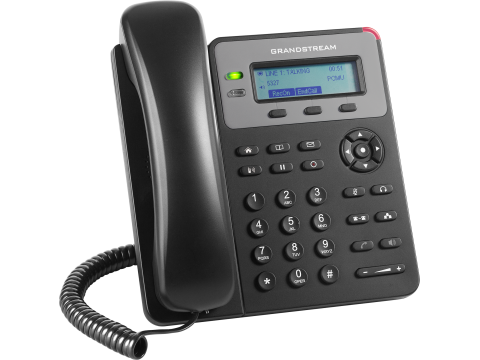

Grandstream GXP1615, PoE Small-Medium Business HD IP Phone, 2 line keys with dual-color LED, dual switched100M/100M Ethernet ports, (with power supply

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Dual 10/100/Mbit/s network ports with automatic identification,
Integrated PoE function (only in GXP1610P/GXP1615)

Graphic display
Graphic LCD display 132*48 pixels (2.95’)

Function Keys
2 line keys with two-color LED, and 1 SIP account, 3 context-sensitive programmable
touch keys, 5 navigation/menu keys, 13
special function keys PAGE/INTERCOM (PAGING/INTERCOM),
PHONEBOOK (PHONEBOOK), MESSAGE (MESSAGE), HOME (HOME)),
HOLD (HOLD), RECORD (RECORD), MUTE (OFF SOUND), HEADSET
(HEADSET), TRANSFER (TRANSFER), CONFERENCE (CONFERENCE), SEND and
REDIAL, SPEAKERPHONE, VOLUME

Voice codecs
Support G.711µ/a, G.722 (Broadband), G.723, G.726-32, G.729 A/B, iLBC,
In-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG,
AEC, PLC, AJB, AGC

Telephony Functions
Hold, Transfer, Redirection (unlimited/no-answer/busy),
Parking/Call withdrawal, Downloadable Phonebook (XML, LDAP, up to 1000
items), Call waiting, Call history (up to 200 entries), Auto-dial,
Auto-answer, One-click dialing, Flexible Numbering plan, Hot
Desking, Personalized music ringtones, Server redundancy
and fault tolerance

Headset jack
Headset with RJ9 connector (which allows the use of EHS with Plantronics headsets)

Base stand
Yes, there are 2 corner positions available, the possibility of mounting on the wall

Possibility of mounting on the wall
Yes

QoS
QoS layer 2 (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level access control
, MD5 and MD5-session authentication, 256-bit encrypted
AES configuration file, media access control SRTP*, TLS, HTTPS, 802.1x
Vários idiomas Inglês, alemão, italiano, francês, espanhol, portuês, russo, croata, chinês
simplificado e tradicional, coreano, japonês e outros

Multilingual support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc.

Updating/providing services
Updating the program via TFTP/HTTP/HTTPS, mass provision of services
via TR-069 or AES-encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
Universal Power Supply connector 100-240VAC 50-60Hz; Output +5VDC,
600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) (only GXP1610P/
GXP1615)

Dimensions and weight
Dimensions 209mm(L) x 184.5mm(W) x 76.2mm(H) (With tube), Device weight: 0.74 kg;
Package Weight: 1.1 kg (GXP1610/GXP1615) 1.0 kg (GXP1610P)
Operating Temperature and Humidity: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% -90%
Non - condensing

Contents of the delivery set
Phone GXP1610/GXP1610P/GXP1615, handset with cord, base,
universal power supply (GXP1610P/GXP1615), power cord, Manual
Quick Start , brochure, GPL license

Accordance
FCC: Part 15, (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-
3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1
