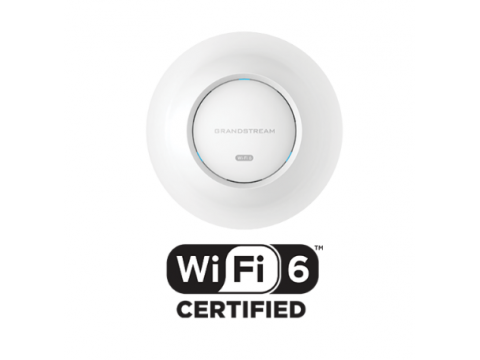

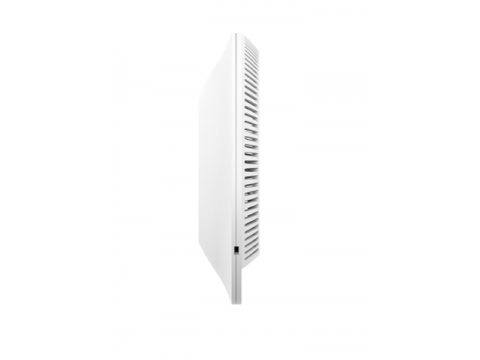

Grandstream GWN7660E, Indoor AX3000 Wi-Fi 6 Access Point, 2x2:2 2.4G, 3x3:2 5G, 1x GbE, PoE, up to 175m coverage, up to 256 wireless clients, 3Gbps aggregate wireless throughput, 50 AP local controlle

Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
5 separate internal antennas
Two 2.4GHz, 4 dBi gain
Three 5 GHz, 5 dBi gain

Data transfer rate by
Wi-Fi
5G
IEEE 802.11ax: 7.3–2402 Mbps;
IEEE 802.11ac: 6.5–867 Mbps;
IEEE 802.11n: 6.5−300 Mbps;
IEEE 802.11a: 6; 9; 12; 18; 24; 36; 48; 54
2.4G Mbps
IEEE 802.11ax: 7.3–573.5 Mbps;
IEEE 802.11n: 6.5−300 Mbps;
IEEE 802.11b: 1; 2; 5.5; 11 Mbps;
IEEE 802.11g: 6; 9; 12; 18; 24; 36; 48; 54 Mbit/s
* The transmission rate can be affected by various factors, including environmental conditions, the distance between
devices, radio interference, and the combination of devices on the network.

2.4 GHz frequency ranges: 2400-2483.5 MHz
5 GHz: 5150-5850 MHz

2.4G bandwidth 20 and 40 MHz
5G 20.40, 80 and 160 MHz

Wi-Fi and system security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking download and blocking
Mission-critical data/management tools with digital signatures, a unique security certificate, and a random
default password for each device.

MIMO 2x2:2 2.4GHz
3x3:2 5 GHz

Coverage area Up to 175 meters
* The coverage area depends on the environmental conditions.

Maximum power
of the transmitter
5G 24 dBm
2.4G 24 dBm
* The maximum power depends on the country, frequency range and MCS.

Receiver sensitivity
2.4G
802.11b -96 dBm at 1 Mbit/s; -88 dBm at 11 Mbit/s; 802.11g: -93 dBm at 6 Mbit/s; -75 dBm at 54 Mbit/s;
802.11n 20 MHz: -73 dBm at MCS7; 802.11n 40 MHz: -70 dBm at MCS7;
802.11ax 20 MHz: -60 dBm at MCS11; 802.11ax 40 MHz: -58 dBm at MCS11;
5G
802.11a: -92 dBm at 6 Mbps, -74 dBm at 54 Mbps;
802.11n 20 MHz: -73 dBm at MCS7; 802.11n 40 MHz: -70 dBm at MCS7;
802.11ac 20 MHz: -67 dBm at MCS8; 802.11ac: 40 MHz: -63 dBm at MCS9; 802.11ac 80 MHz: -59 dBm at MCS9;
802.11ax 20 MHz: -60 dBm at MCS11; 802.11ax 40 MHz: -58 dBm at MCS11; 802.11ax 80 MHz: -56 dBm at
MCS11; 802.11ax 160 MHz: -52 dBm at MCS11
SSID Total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

The number of simultaneously
connected client
devices
256

Network interfaces
1 10/100/1000 Base-T Ethernet Port with Automatic recognition

Additional ports
1 drop hole; 1 Kensington lock

Mounting
On the wall or ceiling in the premises, mounting kit included

LED indicators
3 three-color LEDs for device monitoring and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Quality of service
802.11e/WMM, VLAN, TOS

Network management
The integrated controller can control 50 local GWN access points.
The free GWN cloud platform.The Cloud supports the management of an unlimited number
of GWN access points.
GWN Manager provides a local software controller with support for up to 3,000 GWN access points.

Nutrition and energy efficiency
PoE 802.3af/802.3at;
Max. power consumption: 12.95 Watts

Environmental conditions
Operation: from 0 to 50 °C
Storage: -10 to +60 °C
Humidity: 10 to 90% (non-condensing)

Physical characteristics
Device dimensions: 180.4 x 180.4 x 40.8 mm (to be specified); device weight: 385g
Package dimensions: 228.5 x 220 x 79 mm (to be specified); total package weight: 630 g
