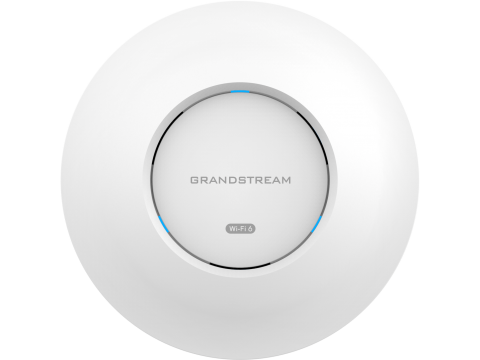

Grandstream GWN7660, 802.11ax 2x2:2 Wi-Fi 6 Access Point

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
2 dual-band external antennas
2.4GHz, 3dBi gain, 5 GHz, 3dBi gain

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ax: from 7.3 Mbit/s to 1201 Mbit/s;
IEEE 802.11ac: 6.5 Mbit/s to 867 Mbit/s;
IEEE 802.11n: 6.5 Mbit/s to 300 Mbit/s;
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit/s:
IEEE 802.11ax: from 7.3 Mbit/s to 573.5 Mbit/s;
IEEE 802.11n: 6.5 Mbit/s to 300 Mbit/s;
IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
*The actual throughput can be affected by various factors, including environmental conditions,
distance between devices, radio interference in the work environment and the combination of devices in the network

Frequencies
2.4GHz radio: 2400-2483.5 MHz
5 GHz radio: 5150-5850 MHz


2.4G channel bandwidth: 20 and 40 MHz
5G: 20, 40 and 80 MHz

System and Wi-Fi protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking boot and lock
critical data/management by means of digital signatures, unique
security certificate/random default password for each device

MIMO
2x2:2 2.4GHz
2x2:2 5 GHz

Coverage area
Up to 175 meters
*coverage area may vary depending on the environment

Maximum power of the transmitter
5G: 22 dBm
2.4G: 24 dBm
*Maximum power depends on country, frequency band and MCS

Receiver sensitivity
2.4G
802.11b: -96dBm@1Mbit/s, -88dBm@11Mbit/s;
802.11g: -93dBm @6Mbit/s, -75dBm@54Mbit/s;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9;
802.11ac 80MHz: -59dBm @MCS9; 802.11ax 20MHz: -60dBm @MCS11;
802.11ax 40MHz: -58dBm @MCS11; 802.11ax 80MHz: -56dBm @MCS11

SSIDs
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client devices
500+

Network interfaces
2 x 10/100/1000 Base-T Ethernet ports with auto-detection

Additional ports
1 x Reset Button, 1x Kensington Lock

Mounting
Plank for wall or ceiling mounting indoors, mounting kits included


SIDs
Three-color LED device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN.Manager - a local software controller for managing up to 3,000 GWN access points

Power and energy efficiency
PoE 802.3af/ 802.3at;
Maximum power consumption: 9W

Environmental conditions
Operation: from 0°C to 45°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight
Device dimensions: 180,4mmx180,4mmx40,8mm; Device weight: 443g
Dimensions of the whole package: 228.5x220x79mm; Weight of the whole package: 774g

Package Contents Wireless access point model GWN7660 802.11ax, mounting kits, quick guide

Compliance with FCC, CE, RCM, IC
