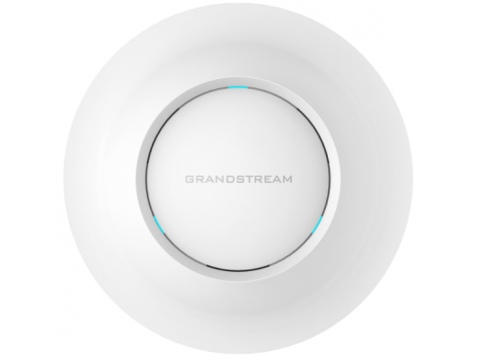

Grandstream GWN7615,WiFi Access Point, 802.11ac, Wave-2

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac (Wave-2)

Antennas
4 dual-band internal antennas
2.4GHz, 4 dBi gain
5 GHz, gain 5 dBi

IEEE 802.11ac Wi-Fi data transfer rate
: from 6.5 Mbit/s to 1733 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
IEEE 802.11n: 6.5 Mbit/s to 600 Mbit/s
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s

Frequency range
2.4GHz radio signal: 2412 - 2484 MHz
5 GHz radio signal: 5180 - 5825 MHz


2.4G channel bandwidth: 20 and 40 MHz
5G: 20 , 40 and 80 MHz

Wi-Fi and system security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, secure download to protect against hacking and
blocking critical data/digital signature management, unique
security certificate/random default password for each device

MIMO
4×4:4 2.4G(MIMO)
4×4:4 5G(MU-MIMO)

Coverage area
Up to 175 meters
*the coverage area may differ from that indicated depending on the environment

Maximum
2.4G transmitter signal power: 27 dBm
5G: 25 dBm
*The maximum power depends on the country, frequency range and MCS

Receiver sensitivity
2.4G
802.11b: -96 dBm at 1 Mbit/s, -88 dBm at 11 Mbit/s;
802.11g: -93 dBm at 6 Mbit/s, -75 dBm at 54 Mbit/s;
802.11n 20 MHz: -73 dBm at MCS7;
802.11n 40 MHz:-70 dBm at MCS7
5G
802.11a: -92 dBm at 6 Mbit/s, -74 dBm at 54 Mbit/s;
802.11ac 20 MHz: -67 dBm at MCS8;
802.11ac: HT40:- 63 dBm at MCS9;
802.11ac 80 MHz: -59 dBm at MCS9

SSID
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneously supported client devices
200+

Network interfaces
2 x 10/100/1000 Base-T Ethernet ports with auto-detection

Additional ports
1 x Reset Button, 1 x Kensington Lock

Mounting
Kits for installation (indoors) on the wall and on the ceiling are included in the delivery package

SIDs
3 three-color LEDs for device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS
802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN Manager - a local software controller for managing up to 3,000 access points
GWN

Power and Energy Efficiency
Support 802.3 az; POE 802.3af/ 802.3at;
Max. consumption: 16.5 W

Environmental conditions
Operation: 0°C to 40°C Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight
Device dimensions: 205.3 x 205.3 x 45.9 mm; Device weight: 590 g
Dimensions of the device with mounting kit: 205.3 x 205.3 x 50.9 mm; Weight of the device with mounting
kit: 710 g
Dimensions of the complete set in the package: 258 x 247 x 86 mm; Weight of the complete set in the package: 930 g

Package contents
Wireless access Point 802.11ac Wave-2 models GWN7630, Mounting kits, Quick
Guide

Accordance
FCC, CE, RCM, IC
