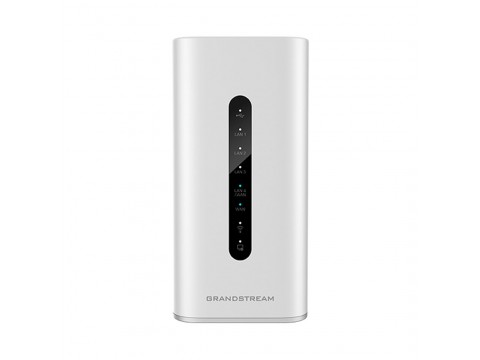

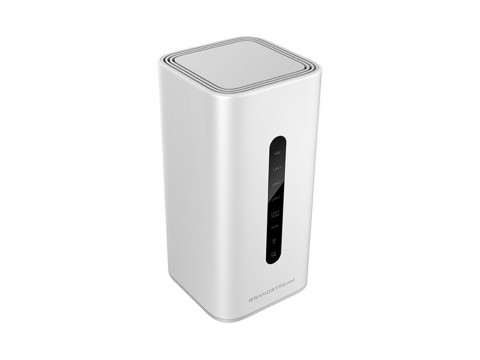

Grandstream GWN7062 Gigabit Wi-Fi 6 VPN router

IEEE 802.11 a/b/g/n/ac/ax Wi-Fi Standards

Antennas
4 independent internal antennas, 2 per
2.4GHz band, maximum gain 4.5 dBi
5 GHz, maximum gain 5.0 dBi

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ac: 7.3–1201 Mbps
IEEE 802.11ac: 6.5–867 Mbps
IEEE 802.11n: 6.5–300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit:
IEEE 802.11n: 7.3–573.5 Mbit/s
IEEE 802.11n: 6.5–300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit
* The transmission rate can be affected by various factors, including environmental conditions, distance between
devices, radio interference, and the combination of devices in the network.

Frequency ranges
2.4GHz: 2400-2483.5 MHz
(2412-2472 MHz is the central channel of the frequency range; 2400-2483.5 MHz is the access frequency band)
5 GHz: 5150-5850 MHz
* In some regions, not all frequency bands are available for use.


2.4G bandwidth: 20 and 40 MHz
5G: 20, 40 and 80 MHz

Wi-Fi and system security
WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking download and blocking
of critical data/controls using digital signatures, a unique security certificate
and a random default password for each device.

MU-MIMO
2×2:2 2.4GHz
2×2:2 5 GHz

Maximum power of the transmitter
5G: 26 dBm
2.4G: 27 dBm
* Maximum power depends on country, frequency range and MCS

Receiver sensitivity
2.4G
802.11b: -97 dBm at 1 Mbit/s; -89 dBm at 11 Mbit/s;
802.11g: -93 dBm at 6 Mbit/s, -75 dBm at 54 Mbit/s;
802.11n 20 MHz: -73 dBm at MCS7; 802.11n 40 MHz: -70 dBm at MCS7;
802.11ax 20 MHz: -64 dBm at MCS11; 802.11ax 40 MHz: -63 dBm at MCS11
5G
802.11a: -93 dBm at 6 Mbit/s, − 75dBm at 54 Mbit/s;
802.11n: 20 MHz: -73 dBm at MCS7; 802.11n 40 MHz: -70 dBm at MCS7
802.11ac 20 MHz: -70 dBm at MCS8; 802.11ac: HT40: -66 dBm at MCS9; 802.11ac 80 MHz: -62 dBm at MCS9;
802.11ax 20 MHz: -64 dBm at MCS11; 802.11ax 40 MHz: -61 dBm at MCS11; 802.11ax 80 MHz: -58 dBm at MCS11

Memory and NAT sessions
512 MB RAM, 120,000 NAT sessions

NAT and IPsec VPN routing speed
NAT routing speed — 2 Gbit/s; IPsec VPN speed — 850 Mbit/s

SSID
A total of 32 SSIDs, 16 per radio channel (2.4 and 5 GHz)

Number of simultaneously connected wireless client devices
Up to 256 wireless client devices

Network interfaces

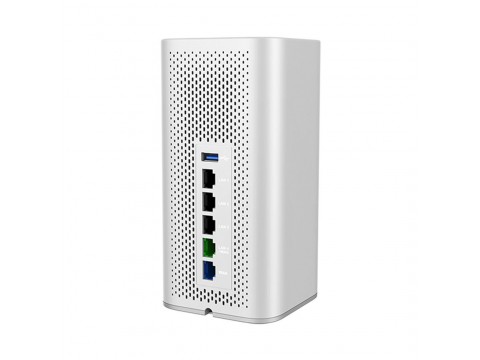

One Gigabit Ethernet WAN connector, one Gigabit Ethernet connector (WAN/LAN configuration) and three Gigabit Ethernet LAN connectors

Additional connectors
1 USB 3.0 connector, 1 reset hole, 1 sync button

Mounting
Desktop PC

LED indicators
1 three-color LED and 7 single-color LEDs for device tracking and status indication

Network protocols
Pv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Quality of service
802.11e/WMM, VLAN, TOS

Firewall
DDNS, port forwarding, DMZ, UPnP, protection against DoS attacks, traffic routing rules, NAT, ALG

VPN
Client: L2TP, PPTP, IPsec, OpenVPN
Server: IPsec, OpenVPN

Network management
The integrated GWN7062 controller can manage up to 50 GWN devices
. GWN.Cloud offers a free cloud management platform for an unlimited number
of GWN7062 routers and GWN devices (coming soon)

Power and energy efficiency
The package includes a universal power adapter:
input: 100-240 V AC; 50-60 Hz
Output: DC12V, 1.5A (18W)

Environmental conditions
Operation: from 0 to 50 °C
Storage: -30 to 60 °C
Humidity: 10 to 90% non-condensing

Physical characteristics Device dimensions: 95 (L) × 95 (W) × 193 mm (H); Device weight: 690 g
Package dimensions: 286 (L) × 126.5 (W) × 105 mm (H); package weight: 960 g

Package contents
GWN7062 router, Universal power adapter, Network cable, quick installation guide

Compatibility
FCC, CE, RCM, IC, UKCA
