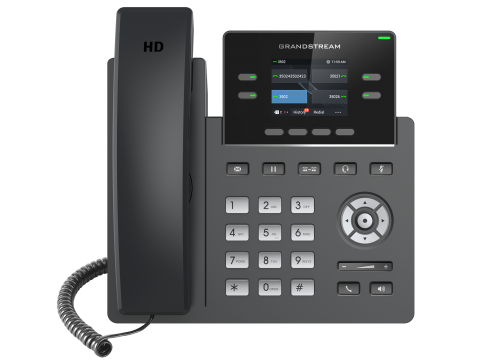

Grandstream GRP2612P, Carrier-Grade IP Phones, 2+2 line keys, 2 SIP accounts, 16 Digital BLF and Speed Dial keys, HD, PoE

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR),
DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP*,
IPV6

Network interfaces
Two 10/100 Mbps network ports with auto-detection (GRP2612)
Two 10/100 Mbps network ports with auto-detection with PoE support (GRP2612P/
GRP2612W)
Two 10/100/1000 Mbps network ports with auto-detection with PoE support
(GRP2612G)

Wi-Fi
GRP2612W, dual-band Wi-Fi module 802.11a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
2.4 inch TFT color LCD screen (320x240)

Function buttons
4 line buttons and up to 2 SIP accounts, 4 XML programmable context-
sensitive on-screen buttons, 5 navigation/menu buttons, 9 special function
buttons: MESSAGE/MESSAGE (with LED indicator), TRANSFER/TRANSLATION, HOLD/
HOLD, HEADSET/HEADSET, MUTE/OFF SOUND, SEND/REDIAL / SEND/
REDIAL, SPEAKERPHONE/SPEAKERPHONE, VOL+/VOLUME+, VOL-/
VOLUME

Optional
RJ9 port headset jack (EHS support when using headsets
Plantronics)

Speech Codecs and Features
Support G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in- and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

Telephony functions
Hold, transfer, forwarding, 3-way conference, call parking
, call interception, paired lines (SCA)/(BLA), downloadable phonebook (XML,
LDAP, up to 1000 positions), call waiting, Call log (up to 1000 entries), XML
screen personalization, auto-dialing when picking up the handset, auto-reply, push call,
flexible number plan, shift work of users, personalized
ringtones and melody on hold, switching to a backup server in case of failure

HD Audio
Yes, high-resolution sound in the speaker tube and speaker with
broadband sound support

Footing
Yes, 2 positions are available, wall mounting option (Wall mounting kit
sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM)GRP2612W, and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password, authentication based on
MD5 and MD5-sess, configuration file with 256-bit AES encryption, SRTP*, TLS,
802.1x media access control, secure boot.

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Customization
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Power and energy efficiency
Universal Power adapter:
Input: 100-240V; Output: +5V, 0.6A;
Powered by Ethernet (802.3af)
IEEE 802.3az Ethernet Energy efficiency
Max. power consumption 3W (power adapter, GRP2612/GRP2612W/GRP2612G)
or 3.8W (PoE, GRP2612P/GRP2612W/GRP2612G)

Temperature and Humidity
Operation: 0°C to 40°C Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
GRP2612 phone, handset with wire, stand, 5V power adapter (only
with GRP2612/GRP2612G), network cable, quick installation guide, GPL
license

Dimensions and weight
dimensions: 203mm x 193mm x 52.1mm; Device weight: 554g; Package weight: 936g
Model GRP2612/GRP2612P/
GRP2612G

Accordance
FCC: Part 15 Class B; FCC Part 68 HAC.
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/CA S004.
IC: ICES-003; CS-03, Part V.
Model GRP2612W

Accordance
FCC: Part 15 Class B; Part 15 Subpart C, 15.247; Part 15 Subpart E, 15.407; FCC Part 68 HAC.
CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; EN 301 489-1;
EN 301 489-17; EN 300 328; EN 301 893; EN 62311.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268; AS/NZS 2772.2; AS/CA S004.
IC: ICES-003; CS-03, Part V; RSS-247; RSS-102.
