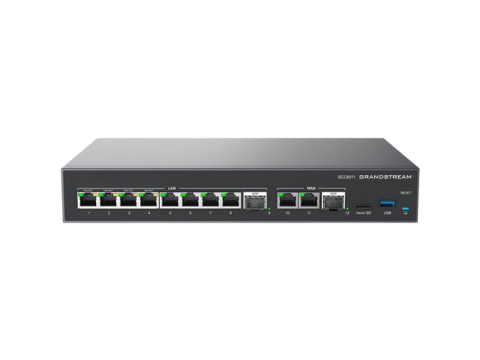

Grandstream GCC6011, All-in-one convergence device: VPN Router, NGFW, Switch and IP PBX. 2x 2.5G SFP, 10x GbE, 3 fixed WAN, 4x PoE-Out, 2.5Gbps NAT

UC + Networking Convergence Solutions

The GCC6010 series is an unusual end-to-end solution that changes the way you think about communications by combining your unified communications and networking solutions into one platform. These state-of-the-art devices combine the functionality of 4 products to provide a comprehensive solution that includes a VPN router, a next-generation firewall, an IP PBX and a network switch or Wi-Fi access point. With the GCC series, you can create and manage wired, wireless, and VPN networks, secure enterprise-grade networks, and use the market-leading communication and collaboration platform. These flexible devices provide unified management and centralized control of all Grandstream endpoints, including Wi-Fi access points, network switches, IP phones and more. The GCC series allows you to configure complete UC, network and security solutions in minutes and manage them through the cloud using the Grandstream Device Management System (GDMS), as well as manage them through our mobile application, local web interface and SSH management console. Ideal for small and medium-sized businesses, the GCC6010 series is a comprehensive platform that combines all business data, security, communication and collaboration needs in one device, making creating modern communication solutions easier and more accessible than ever.

GCC6011

2 x 2.5 Gigabit SFP port and 10 x Gigabit Ethernet ports
*3x Fixed WAN
Auxiliary Ports 1xMicro-SD, 1xUSB 3.0, 1xReset
Memory 2GB RAM, 32GB eMMC Flash
External Storage Optional, M.2 SSD
Router 2.5Gbps
IPsec VPN Throughput 1Gbps
NAT Sessions 160K
IDS/IPS 900Mbps
PBX 12 users and 4 concurrent calls by default
Upgrades available for purchase (See more for PBX capacity upgrade options)
PoE Output 4 x PoE out ports, IEEE802.3af/at, Maximum PoE Wattage: 36W
Mounting Desktop, Wall, and Rack-mountab
Material Metal
LEDs 12x single LEDs, 4x PoE LEDs, and 1x RGB LED for
device tracking and status indication
Connection Type DHCP, Static IP, PPPoE
Network Protocols IPv4, IPv6, IEEE802.1q ,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab
QoS
• VLAN, TOS
• Support multiple traffic classes, filter by port, IP address, DSCP, and policing
• App QoS: Application/protocol monitoring and traffic statistics
• VoIP Prioritization
Firewall
• DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT
• DPI, Anti-Virus, IPS/IDS, SSL Proxy
• Content Control: DNS filtering, web url/class/key words filtering, application identification and control
VPN
• IPsec VPN Client-to-Site / Site-to-Site
• IPSec Encryption: 3DES, AES
• IPSec Authentication: MD5, SHA-1, SHA2-256
• IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
• IPSec Protocols: ESP
• IPSec NAT Traversal
• PPTP VPN Server / Client
• PPTP Encrpytion: MPPE 40-bit, 128-bit
• PPTP/L2TP Authentication: MS-CHAPv1/2
• L2TP Client-to-Site
• OpenVPN® Server / Client
• OpenVPN® Encryption: AES, DES
• OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
• OpenVPN® Certificate: RSA
• WireGuard®
Network Management Grandstream Device Management System (GDMS), Local Web GUI, SSH, and SNMP (v1/ v2c/v3))
Max AP/Clients Up to 150 GWN APs; Up to 500 Clients
