Базовые характеристики
*1
The maximum monthly print load is the range of pages to help customers evaluate product offerings based on the average number of pages customers are prepared to print on the device each month. Customers are advised that the number of pages printed per month should be within the device's recommended range for optimum performance. In addition, other factors that should be considered include: consumable replacement intervals, paper loading intervals, print speeds, and typical applications of the customer.
*2
This resolution specification cannot be displayed on the official website or any promotional materials, and is only used as a bidding specification.
*3
The paper capacity is calculated according to the 75g/㎡ standard test paper. If the paper thickness or weight is different, the capacity will be affected.
*4
The output tray specifications are affected by the printing environment, paper brand, paper weight, etc., and the actual specifications may vary.
*5
Cartridge capacity is the average yield of the toner cartridge in test one-sided (single-sided) mode for continuous printing, based on the ISO/IEC 19752 standard for color machines. Actual yields may vary based on device speed, paper size and orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity, among other factors.
Consumable Type
Toner Cartridge & Drum Unit
Copy reduce / enlarge settings
25-400%
Copy Resolution (max.dpi)
Maximum:600x600dpi
Copy Type
automatic、text/graphic、text、photo、map
Duplex copy speed
color：18ipm mono：21ipm
Duplex Print Speed
color：18ipm mono：21ipm
Duplex Scan
mono：21ipmcolor：19ipm
Finisher
PF-270/PF-270X finisherPK-270B saddle stitch unitPK-270P punching unitPF-270G Gap Filler
First copy out time
FB：mono：5.9s；color：12s RADF：mono：9s；color：11.6s
First Print out time
mono：5.9s color：12s
Interface
High-speed USB2.0, 3.0high speed USB2.0/3.0 Ethernet10/100/1000Base-T
Linux system
Redhat 9/8，Ubuntu 22.04/20.04
Mac system
MacOS 13/12/11/10.15/10.14
Maximum Monthly Duty Cycle*1
100000 pages
Media sizes
A6、A5、A4、A3、B6、B5、B4、5.5×8.5‘'、7.25×10.5’' 、8×10‘‘、8.5×11’’、215x315mm(8.46x12.4‘')、8.5×13’’、8.5×14‘’、11×15’’、11×17‘’、A4-Cover、Letter-Cover （9x11’'）、16K 、8K 、Post card、Double post card、3.5x5‘' (Photo L size)、Post Card (3.5x5.5’')、Post Card (4ｘ6'‘)、Post Card (5x7’')、Post Card (6ｘ9‘')、Envelop
Media types
Bond, Plain, Recycled, Plain Reload, Custom, Heavy, Labels, Envelopes
Media Weight
Standard paper input tray：60 - 256g/㎡Multipurpose tray：60 - 216g/㎡Optional paper input tray： 60 - 256g/㎡
Noise
Ready：3.33 BOperation：6.71 BScan：53dBA
Operation panel
7inch touch screen
Optional paper tray
PT-270 500 pagesPT-270H 500 pages*3 PT-270X 500pages+cabin
Other copy function
Image rotation, border removal, ID card copying
Package Dimensions(W*D*H)
745*692*890 mm（without pallet）
Paper Input Capacity*³
Standard：500 pages Multifunctional paper tray：96 pages Standard：596 pagesMaximum：2096 pages
Paper Output Capacity*⁴
400pages（A4 landscape ），200pages（A3）
Paper output full detection
YES
Power
AC220-240V、50/60Hz、8A
Power consumption
Maximum：1920 w Ready：83 wSleep：0.4 w
Print Environment
Recommended Temperature：10 - 28°CHumidity range：15 - 85% Altitude：0 - 2500 meters（8200 feet）
Printer language
PCL5/PCL6
Processor speed
1296MHz dual core
Product Dimensions(W*D*H)
590x659x771 mm590*659*885mm(with PT-270 )590*659*1122 mm(with PT-270X)590*659*1122 mm(with PT-270H）1136*659*1122 mm(with PT-270X and PF-270/PF-270X)1136*659*1122 mm(with PT-270H and PF-270/PF-270X)
Product gross weight（kg）
77.8kg
Product net weight（kg）
70.55kg
Recommanded Monthly Duty Cycle
5000 pages/month
Scan Destinations
Scan to PC（SMB, FTP, WSD）/USB/Email(SMTP)
Scan format
Gray Scale/Color：TIFF, JPEG, PDFBW : TIFF, PDF
Scan mode
color，grey，mono
Scan resolution
Maximum：600x600dpi
Standard cartridge Dimensions(W*D*H)
K：448 x 75 x 78 mmYMC：448 x 62 x 60 mmDrum unit：449 x 58 x 81 mmWaste toner box：452 x 64 x 212 mm
Standard cartridge gross weight（kg）
K：0.91kgYMC：0.66kgDrum unit：0.91kgWaste toner box：1.3kg
Standard cartridge net weight（kg）
K：0.81kgYMC：0.58kgDrum unit：0.61kgWaste toner box：0.5kg
Standard cartridge package Dimensions(W*D*H)
K：456*77*83mmYMC：452*63*65mmDrum unit：522*114*145 mmWaste toner box：520*275*92mm
Standard cartridge*5
CTO-2600K：22000 pagesCTO-2600Y：15000 pagesCTO-2600M：15000 pagesCTO-2600C：15000 pages
Standard drum unit
CDO-2600：126500 pages（K），96000 pages（YMC）
Starter cartridge
CTO-2600K：22000 pagesCTO-2600Y：15000 pagesCTO-2600M：15000 pagesCTO-2600C：15000 pages
Starter drum unit
CDO-2600：126500 pages（K），96000 pages（YMC）
Warming up time
less than 28s
Waste Toner Box
CWT-2600：30000 pages
Windows system
Windows11/Windows 10/ /Windows server2022/Windows Server 2019/Windows Server 2016 /Windows Server 2012 R2/Windows Server 2012 (32bit/64bit)
Wired network printing
YES
Полное наименование

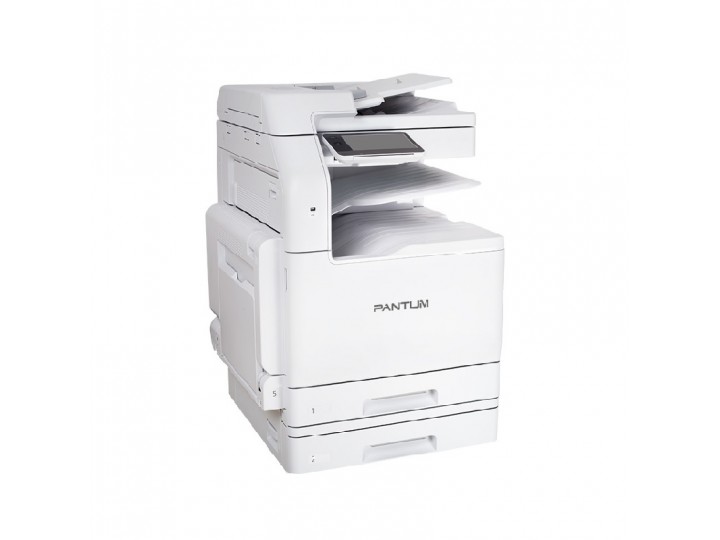

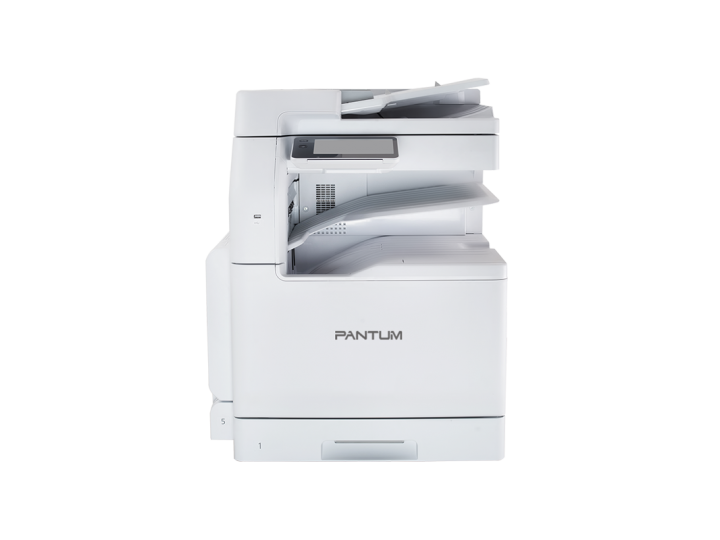

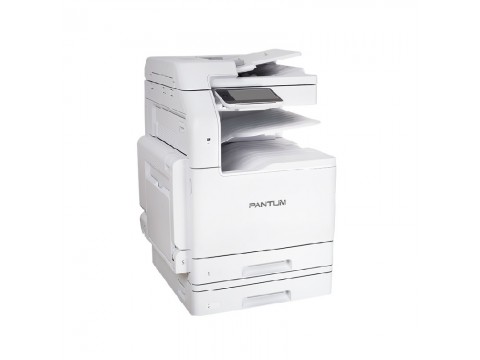

Pantum CM420ADN 35ppm color MFP (A3), RADF, 3-in-1(print, scan, copy), duplex, network
