Базовые характеристики
Access control
Flexible access control of SSH, Web interface, CLI and Telnet
Antennas
2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
Band management
Band lock, Used band status display
Block/Allow list
Operator block/allow list (by country or separate operators)
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
Casing material
Aluminium housing, plastic panels
Certificate Manager
Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Connector
4-pin industrial DC power socket
Cumulocity - Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Data to server
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
DDNS
Supported >77 service providers, others can be configured manually
Development tools
SDK package with build environment provided
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
Dimensions (W x H x D)
83 x 25 x 74 mm
DLMS Support
DLMS - standard protocol for utility meter data exchange
DMVPN
Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
eSIM*
Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FLASH storage
16 MB, SPI Flash
GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
GRE
GRE tunnel, GRE tunnel over IPsec support
Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
I/O juggler
Allows to set certain I/O conditions to initiate event
I/O’s
1 x Digital Input, 1 x Digital Output on 4-pin power connector
Ingress Protection Rating
IP30
Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Input voltage range
9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
JSON-RPC
Management API over HTTP/HTTPS
Keep settings
Update FW without losing current configuration
Load balancing
Balance Internet traffic over multiple WAN connections
Mobile module
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number
Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
MQTT
MQTT Broker, MQTT publisher
Multiple PDN
Possibility to use different PDNs for multiple network access and services
Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
Network topology
Visual representation of your network, showing which devices are connected to which other devices
OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods
Operating Humidity
10% to 90% non-condensing
Operating System
RutOS (OpenWrt based Linux OS)
Operating Temperature
-40 °C to 75 °C
Output
1 x Digital Output, Open collector output, max output 30 V, 300 mA
Package Manager
The Package Manager is a service used to install additional software on the device
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Port management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Power
1 x 4-pin power connector
Power consumption
< 6.5 W Max
PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Protocol
HTTP(S), MQTT, Azure MQTT
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
Radiated Immunity
EN IEC 61000-4-3:2020
Regulatory
CE, UKCA, RCM, EAC, Anatel, ANRT, Kenya, ICASA, NCC, ETA-WPC, SIRIM, IMDA, NTC, NBTC, MTC NOM, E-mark, CB, RoHS, REACH, R118, MTCTE, ETA-WPC
Reset
Reboot/User default reset/Factory reset button
RMS
Update FW/configuration for multiple devices at once
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
SIM switch*
1 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
SMS
SMS status, SMS configuration
SNMP
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
SSHFS
Possibility to mount remote file system via SSH protocol
SSID/ESSID
SSID stealth mode and access control based on MAC address
SSTP
SSTP client instance support
Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018
Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
Status LEDs
3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
Supported connection types
TCP
Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
Supported languages
Busybox shell, Lua, C, C++
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
TravelMate
Forward Wi-Fi hotspot landing page to a subsequent connected device
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
VLAN
Port and tag-based VLAN separation
WEB filter
Block list for blocking out unwanted websites, allow list for specifying allowed sites only
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
WireGuard
WireGuard VPN client and server support
Wireless Connectivity Features
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter
Allowlist, blocklist
Wireless mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wireless QR code generator
Once scanned, a user will automatically enter your network without needing to input login information
ZeroTier
ZeroTier VPN client support
Полное наименование

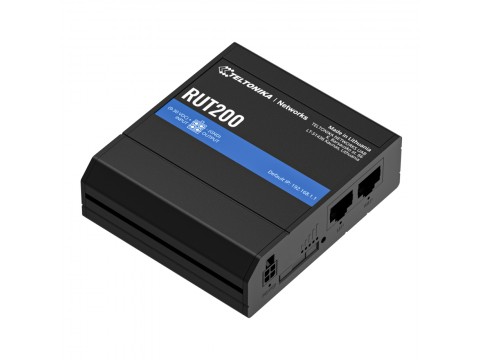

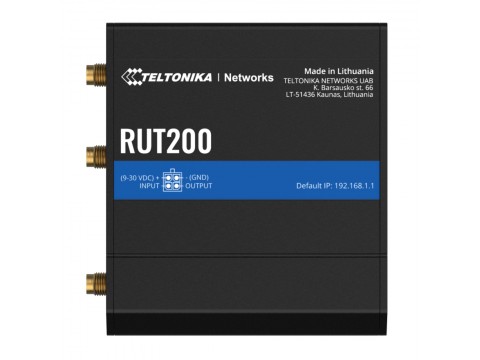

Маршрутизатор TELTONIKA/RUT200 Промышленный/WAN 1xRJ45 10/100Mbps, 1xMiniSIM – 2FF 4G/LTE (Cat 4)/LAN 1xRJ45 10/100Mbps/Wi-Fi 802.11b/g/n/2xSMA LTE, 1
